• Highly productive laser generator, which is air cooled in environments of up to 35°C. Preset for water cooling if required in warmer environments. Up to 3 different shot profiles can be programmed into the units main memory. Complete autodiagnosis and self-testing features. Built in stainless steel for high durability and ease of cleaning. Laser soldering signifies high efficiency, low main tenance, reliability and ease of use.

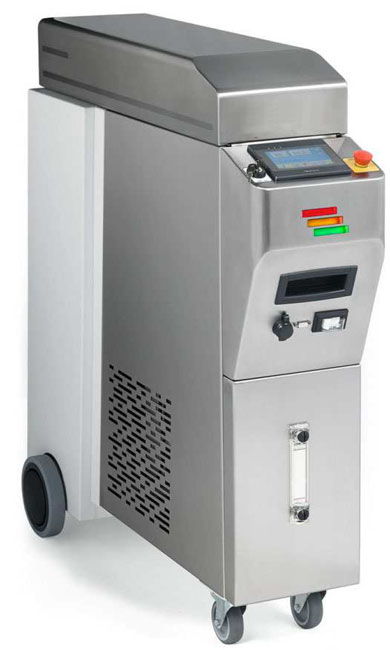

     CL350

  • Technical featuresCL 350CL500
    Basic power35 W50 W
    Laser sourceNd.Yag Pulsed Class IV
    Wave length1064 nm
    Max. Energy25 J50 J
    Impulse duration0.1 – 30 ms
    Impulse frequency1,000 shot/min
    Technical data
    Voltage (single phase)230 V 50/60 HZ
    Power1.5 kW
    Max working temp35°C
    CoolingAir flow
    Dimensions25 x 71 x 106 (h) cm -94 kg
    Packing123 x 103 x 50 (h) cm – 140 kg

  • Download Technical File
