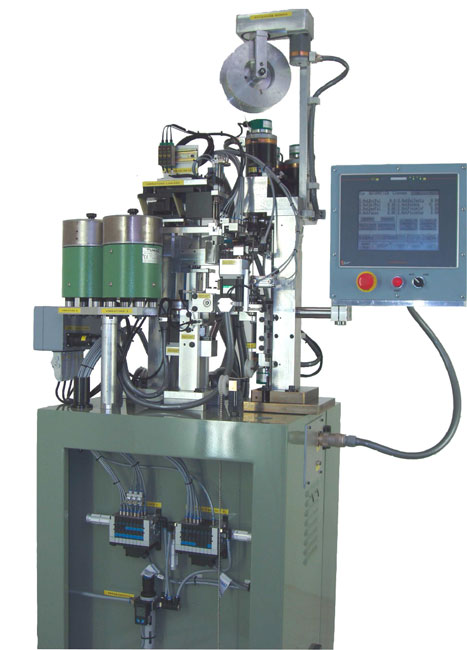

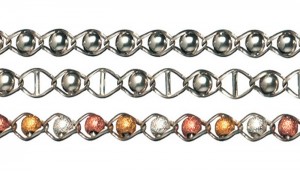

• Fully automatic machine for the application of beads/balls directly into an anchor (gucci) chain. The unit takes anchor chain from a spool and automatically selects a bead from one of the 3 vibrating hoppers and inserts it onto the link bar. The beads (which have 2 holes) are left free to rotate within the link. The chain may also then be curbed directly after inserting the bead. The 3 vibrating hoppers can manage 3 different colour/shape beads which are sequenced into the chain based on the program inserted in the machine by the operator. Even beads without holes can be mounted by caging them inside the link after it has been curbed. MIP1 version has only 1 hopper.

    MIP

  • Technical features
    Max. production speed30 beads/min
    Bead sizes min – max2.6 – 6.0 mm
    Chain link width max 8.7 mm
    Punch cutting power125 kg
    Technical data
    Voltage (three phase)400 V 50/60 Hz
    Power6.1 kW
    Compressed air46 l/min (filtered) at 7 bar
    Dimensions86 x 66 x 211(h) cm –410 kg
    Packing100 x 200 x 100 (h) cm (approx)
