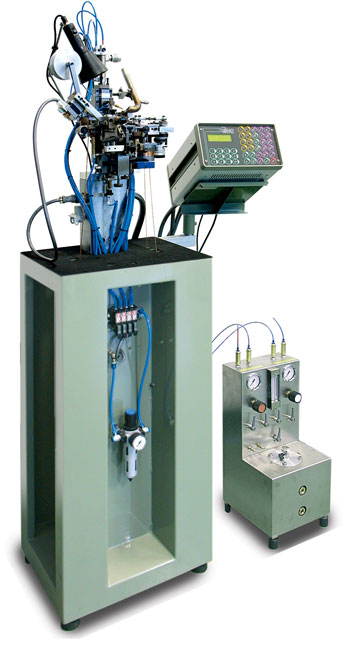

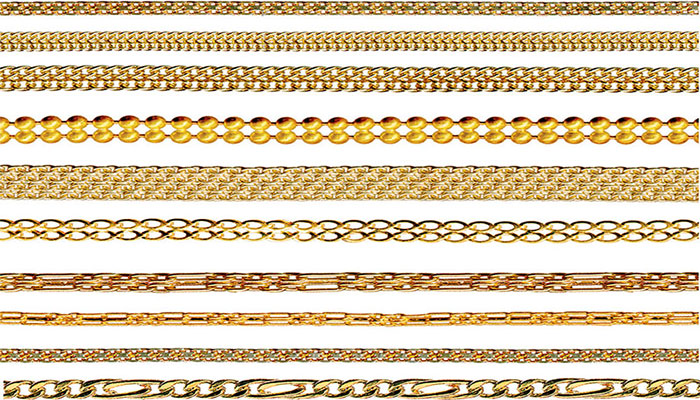

• Automatic machines for the production of “Bismark” chains. These units solder two chains together in parallel. Version 2 is used for only fixed pitch chains, while version 4 can also process alternated chains (Figaro).
    The unit has a unique advancing system which automatically corrects any error between the chains pitches. The welding process is carried out using gas mixture of Hydrogen and Oxygen. The units are supplied with the CCS control and deoxidising unit, a bidirectional gas flow regulator and non return valve.
    The CCS unit apart from regulating the flow and pressure of the gas mixture, also adds a deoxidising agent to the hydrogen, thus preventing the build up of oxide on the chain and the machine itself. All of the machine is completely controlled by a microprocessor based control unit, which sees to controlling all facets of the process: chain feeding, alloy placement, flame positioning and timing etc.

    SCIP2/4

  • Technical features
    Max. production speed120 links/min
    Max. process width 22 mm
    Wire Ø from 0.35 to 2.00 mm
    Technical data
     Voltage (single phase) 230 V 50/60 Hz
    Power 0.15 kW
    Gas consumption H 100 l/h – O 100 l/h
    Compressed air 27 l/min (filtered) at 6 bar
    DimensionsSCIP2 – SCIP4  70 x 48 x 157(h) cm – 68 kg
    CCS28 x 29 x 70(h) cm – 18 kg
    packing 198 x 62 x 70 (h) – 130 kg
