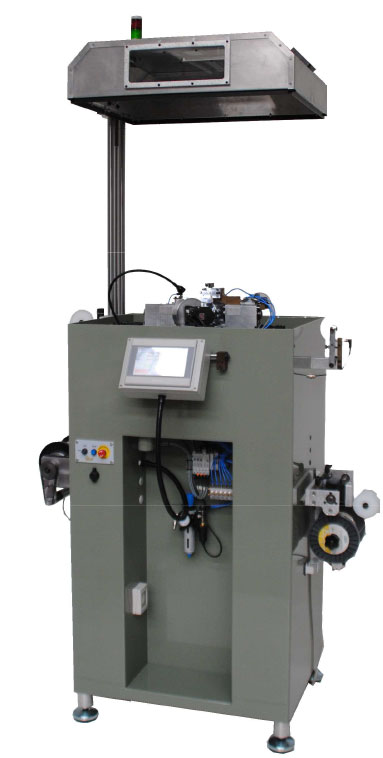

• Automated and compact machine for faceting chains and chain ornaments. Fully programmable with 8 controlled axis allowing full flexibility of design cuts. Can be equipped with 2 fully independent easily changeable diamond wheels, or spindles, (or a combination of both). It assures the highest speed
    productivity in its range of machines. The cutting wheels guarantee an elevated cutting speed giving maximum cutting efficiency and quality as well as maximum durability of the cutting diamonds.
    Optic fibres handle communication between the PLC and the synchronised brushless motors, which allow micrometric precision in positioning and speed.
    Chain positioning is fully mechanical, guaranteeing perfect positioning, as well as automatic pitch error recovery, along with the fastest speed possible All aspects of operator control are interfaced with a full touch screen control panel with program memorization capabilities as well as modem connection capabilities for remote assistance.



  • Technical featuresSFM
    Cutting speed1900 m/min/min
    Cutting wheels2
    Max. chain Ø5.0 mm
    Technical data
    Voltage (single phase)230 V 50/60 Hz
    Power1.80 kW
    Compressed air 50 l/min (filtered) at 7 bar
    Dimensions80 x 120 x 165 (h) cm – 275 kg
    Packing85 x 85 x 193 (h) cm – 360 kg
