PRODUCT DETAILS
MIB3
BAR/STRIP INSERTING MACHINE

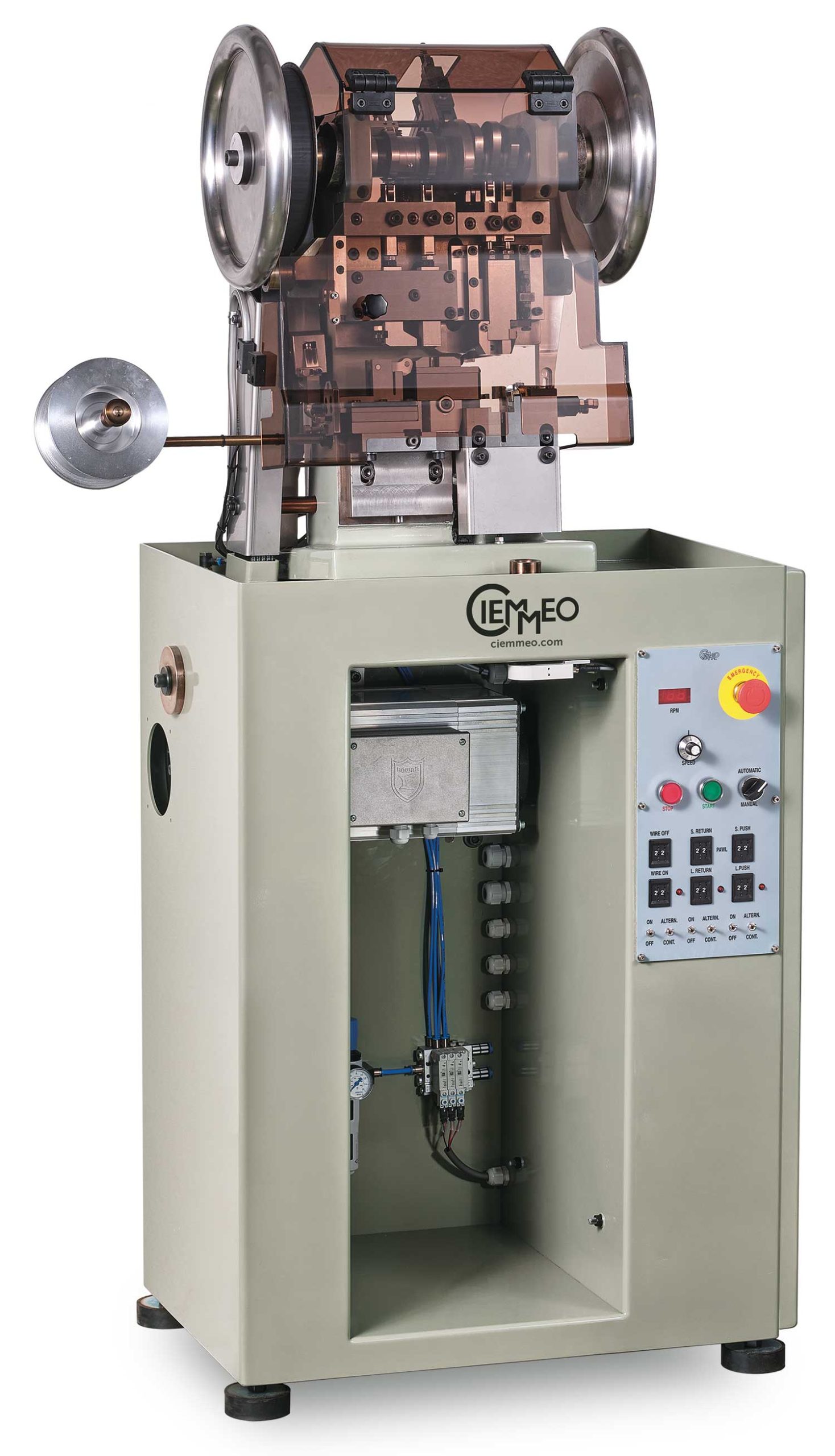

The MIB3 Heavy Duty Chain Bar Insertion Machine by Ciemmeo is an advanced automatic system for inserting bars or strips into larger chain links.
It is designed for cable, curb, and Figaro chains, offering superior accuracy and performance for heavy-duty jewellery manufacturing.
Automatic System For Large Chain Assembly
This chain bar insertion machine handles both fixed-pitch and variable-pitch chains, positioning metal bars or strips into each link with absolute precision.
It ensures structural consistency and perfect alignment before closure or soldering.
The MIB3 is built for large chain dimensions and higher mechanical stress, combining power and precision in one compact frame.
The automatic feeder system optimises speed and stability, reducing downtime and material waste.
Optional laser soldering integration is available for direct bar welding inside the link, ensuring a flawless finish and superior chain durability.
Advantages Of The MIB3 Heavy Duty Chain Bar Insertion Machine
The MIB3 Chain Bar Insertion Machine automates a complex production step in the jewellery industry.

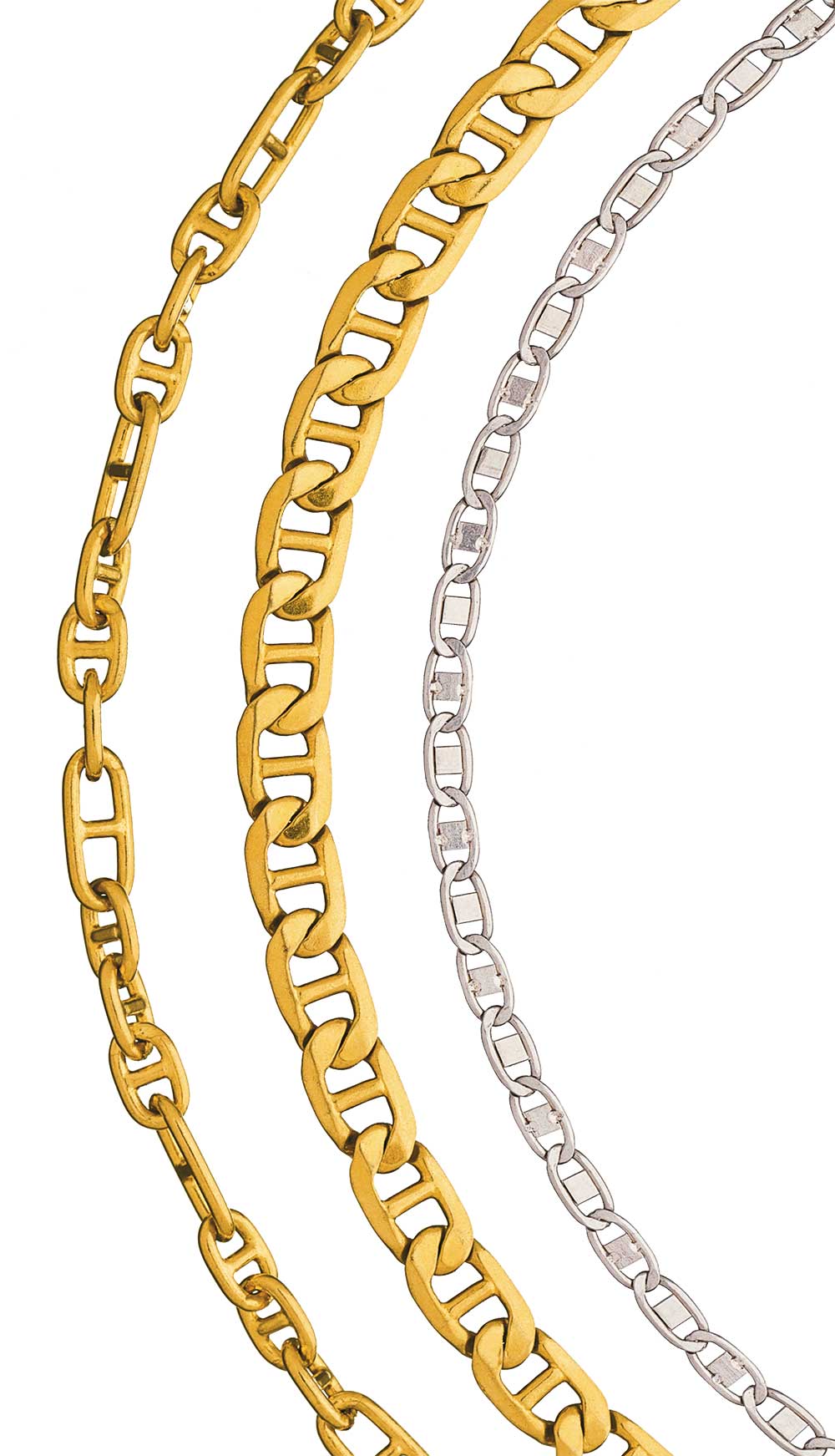

It allows the creation of large, high-end chains such as Gucci or Valentino types with extreme accuracy and repeatability.
Its robust construction and modular setup make it ideal for continuous production environments requiring reliability and precision.
Main Features – MIB3 Heavy Duty Chain Bar Insertion Machine
Inserts Bars or Strips into chain links
Cable & curb chains
Fixed pitch & Figaro
Wire Ø 1.20 – 4.00 mm
High productivity
Tele-assistance available
Technical Data – MIB3 Heavy Duty Chain Bar Insertion Machine
Max. production speed | 120 bars/min |
Max. feeding pitch | up to 37 mm |
Wire Ø | 1.20 – 4.00 mm |
Voltage (single phase) | 230 V 50/60 Hz |
Power | 1 kW |
Compressed air | 20 l/min (filtered) at 6 bar |
Dimensions | 70 x 60 x 165 (h) cm – 250 kg |
Packing | 90 x 70 x 175 (h) cm – 370 kg |
Note: The above data, features and characteristics are not binding. Ciemmeo s.r.l. retains the right to vary them at any time without prior notice.
