PRODUCT DETAILS
PS1

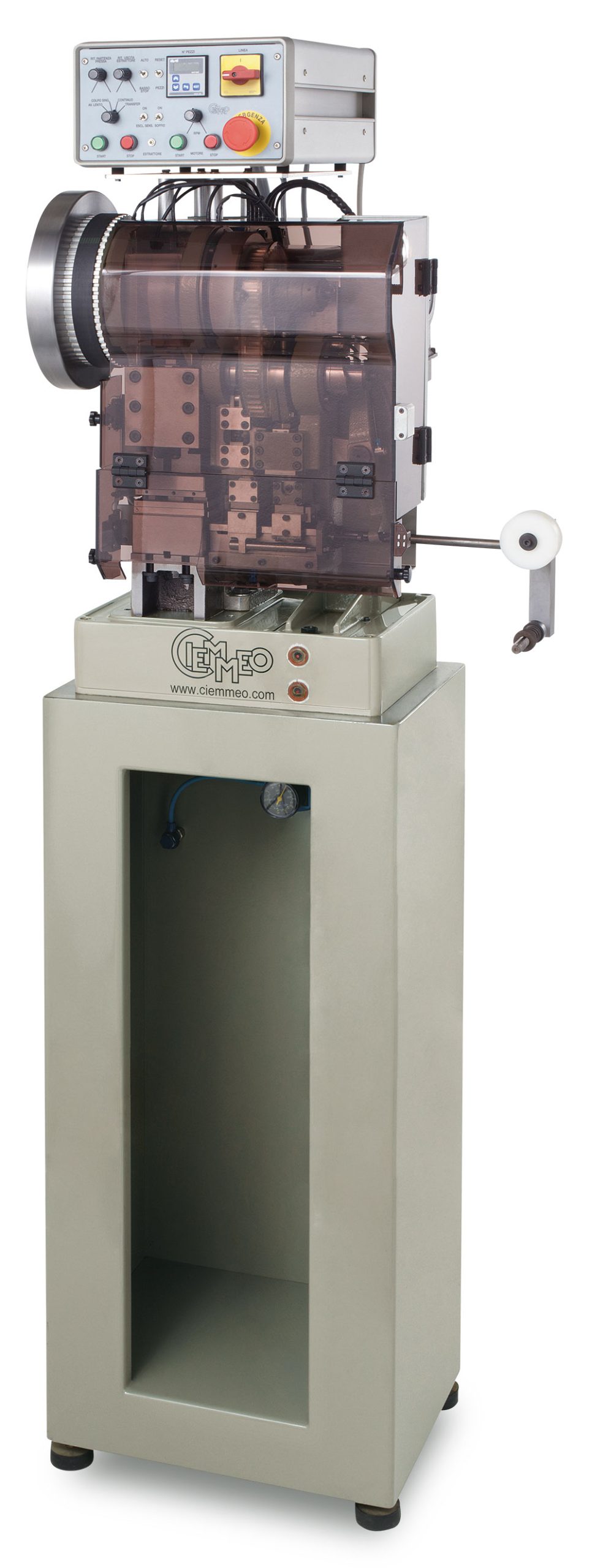

AUTOMATIC STAMPING PRESS

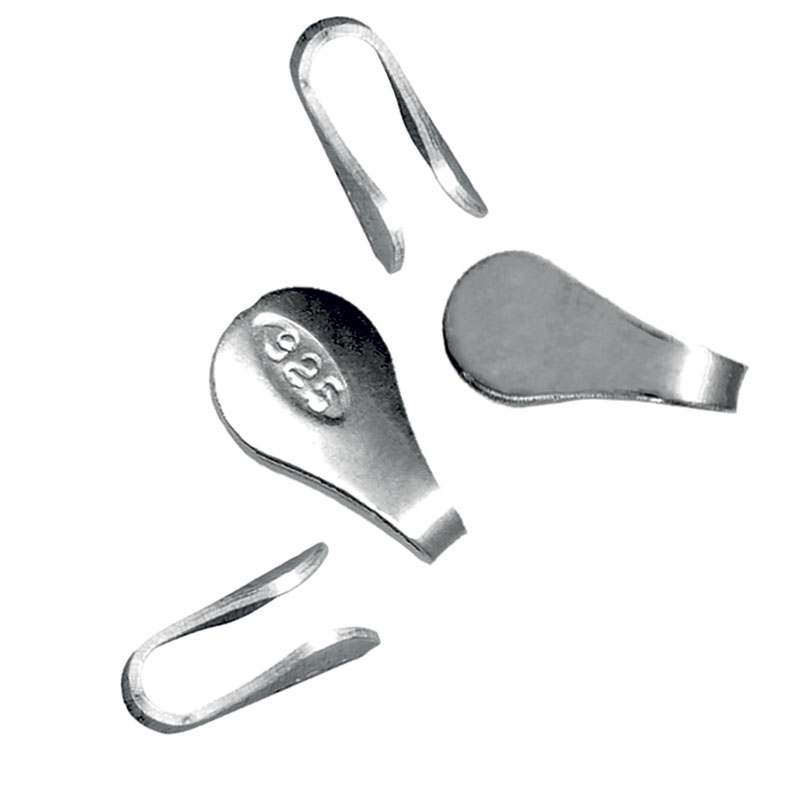

The PS1 Jewellery Stamping Press by Ciemmeo is a compact 5-ton automatic press designed for cutting and stamping end clips, quality tags, and other jewellery components from metal strips.
It guarantees precise shaping and consistent quality for small metal parts and chain elements.
Automatic Stamping And Cutting System
This jewellery stamping press automatically feeds a metal strip at adjustable pitch, cutting and stamping components such as tags or clips according to the die set installed.
Different shapes and sizes can be easily produced by changing the die block.
The PS1 can also hammer and calibrate chains simply by replacing the tooling, making it an extremely versatile solution for jewellery production.
Its programmable counter stops the machine automatically once the preset quantity is reached, ensuring precise control over production batches.
Advantages Of The PS1 Jewellery Stamping Press
The PS1 Jewellery Stamping Press combines compact design, precision, and flexibility in one unit.
It’s suitable for both small-scale and industrial production, guaranteeing repeatable results and minimal maintenance.
Quick tool change and pitch adjustability allow easy customisation for different jobs.
Main Features – PS1 – Automatic Stamping Press
Stamps cut outs from strip
5 Ton stamping power
28 mm max pitch
Technical Data – PS1 – Automatic Stamping Press
Press power | 5 Tons |
Press stroke | 12 mm |
Strip width | 40 mm |
Feeding pitch | 28 mm |
Press speed | 600 strokes/min |
Voltage (single phase) | 230 V 50/60 Hz |
Power | 1 kW |
Dimensions | 72 x 46 x 170 (h) cm – 167 kg |
Packing | 92 x 66 x 190 (h) cm – 210 kg |
Note: The above data, features and characteristics are not binding. Ciemmeo s.r.l. retains the right to vary them at any time without prior notice.
