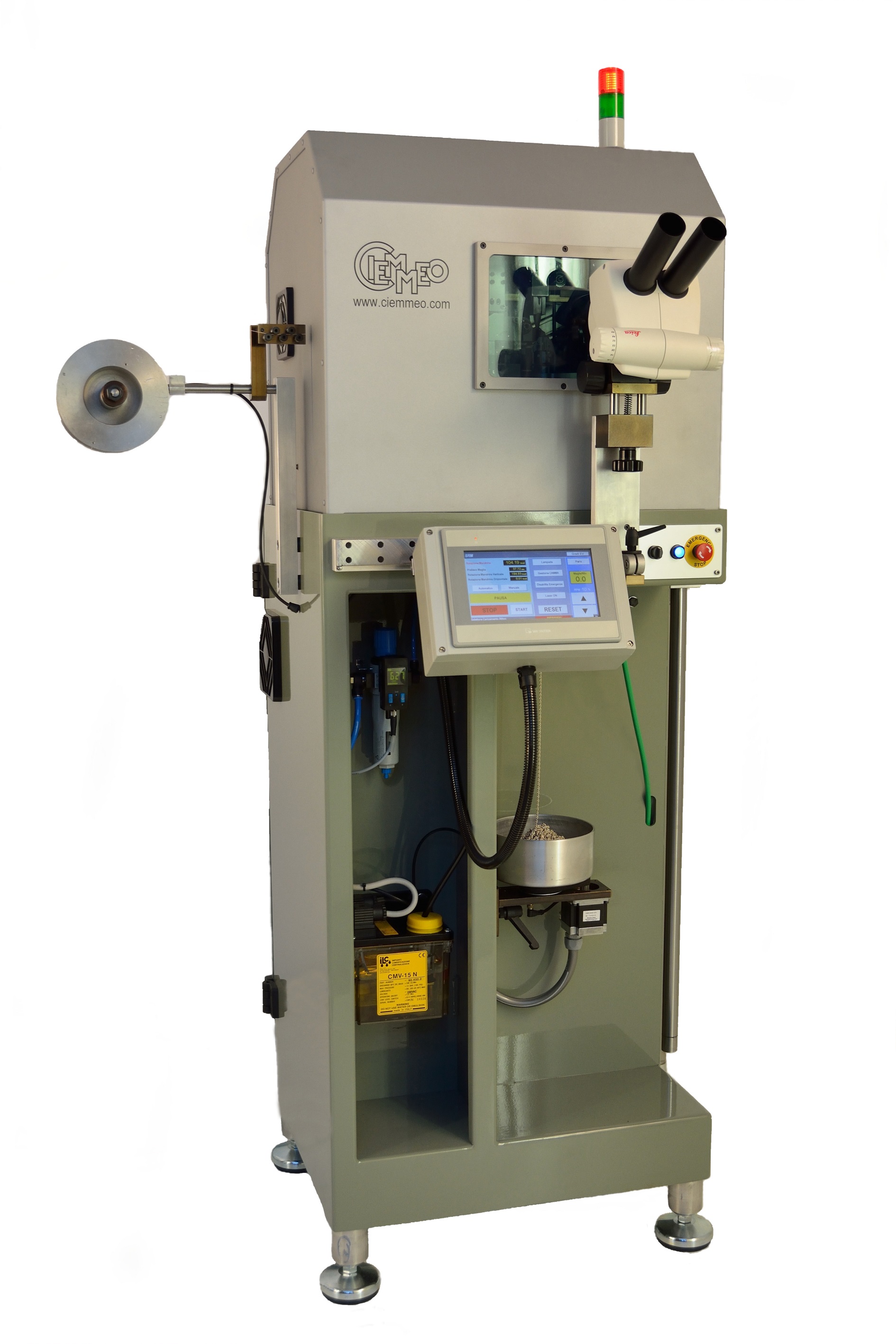

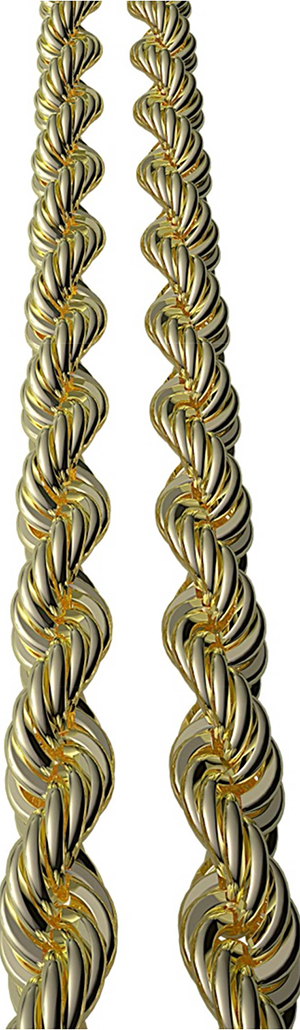

• Fully automated and compact machine able to produce Rope Chain from 0.30 to 1.20 mm wire. State of the art mechanical & electronic technologies combine to give the fastest, most compact single Rope Chain machine available. Optic fibres control multiple synchronised brushless motors which carry out the delicate positioning, weaving & soldering of the links, while heavy duty mechanical cams and levers cut, form, shape and calibrate each single link for maximum brilliance, shine and efficiency. Complete with newly engineered miniaturised
    laser focussing scope for precision soldering even at high speeds. Designed with the needs of the operator in mind, the wire to chain process is designed in separate easy to maintain removable
    section blocks, for rapid adjustments and tooling changes. All main functions on same horizontal plane, easing inspection of all phases Full touch screen control and modem hookup capabilities.

  • Technical features
    Max. production speed 100 links/min
    Wire Ø 0.30 – 1.20 mm
    Technical data
    Voltage (single phase) 230 V 50/60 Hz
    Power 0.60 kW
    Compressed air 1 l/min (filtered) at 6 bar
    Dimensions 60 x 50 x 150 (h) cm – 150 kg
    packing 180 x 77 x 73(h) cm – 190 kg

  • SRM – Automatic wire to chain – Rope Chain machine
