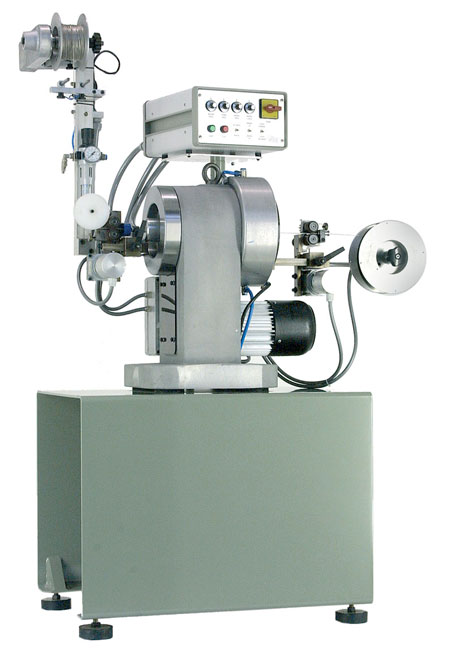

• Extremely fast and precise hammering unit specially designed for calibrating round chains. Very silent machine meeting all safety and environmental standards for full future production requirements. Comes complete with an internal water cooling circuit so as to guarantee a constant temperature during the hammering process thus guaranteeing centesimal precision.


  • Technical features
    Rotation speed500 rpm
    Production speed5 m/min
    Chain dimensions Ø0.60 to 3.00 mm
    Hammering powerup to 900 kg.
    Technical data
    Voltage230 V
    Power1 kW
    Cooling water120 l/h max. at 18°C max.
    Compressed air1 l/h at 6 bar
    Dimensions100 x 78 x 150 (h)cm – 203 kg
    Packing89 x 69 x 131(h) cm – 263 kg


  • Download Technical File
