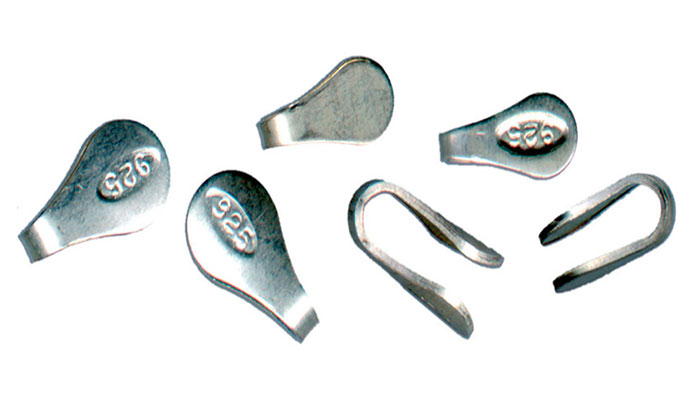

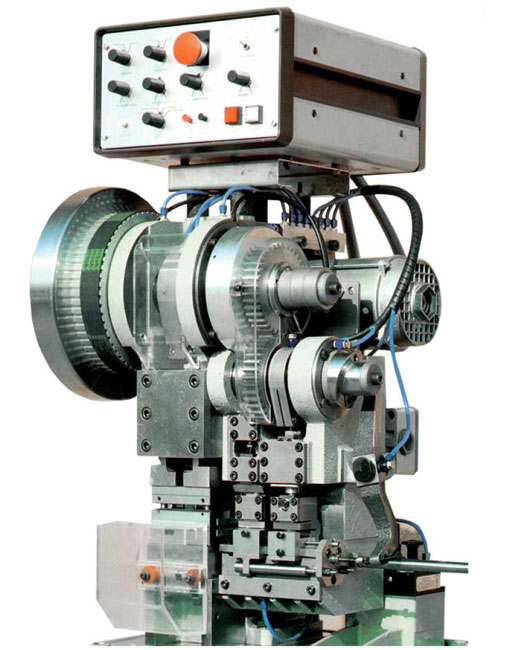

• An automatic 5 Ton press which automatically cuts and stamps (with your hallmark) end clips, quality tags or other blanks from a strip which is automatically fed into the machine at various pitches. Different shapes and sizes are obtained by simply changing the die block and inserting a new one. It is also able to hammer and calibrate different chains simply by changing tool sets on the unit. The length of the press stroke is adjustable to meet any production need. The unit comes complete with a programmable piece counter stopping the unit once reaching the number of pieces required.


  • Technical features
    Press power 5 Tons
    Press stroke (max) 12 mm
    Strip width (max.) 40 mm
    Feeding pitch (max.) 28 mm
    Press speed 600 strokes/min
    Technical data
    Voltage (single phase) 230 V 50/60 Hz
    Power1 kW
    Compressed air1 lt./min (dry) at 6 bar
    Dimensions65 x 42 x 170(h) cm – 180 kg
    Packing188 x 64 x 68 (h) cm – 210 kg
