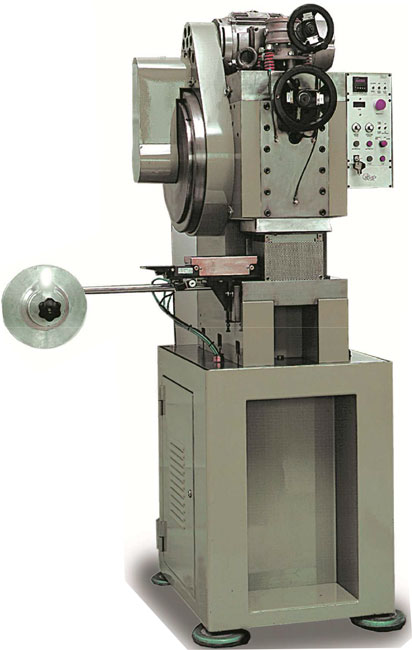

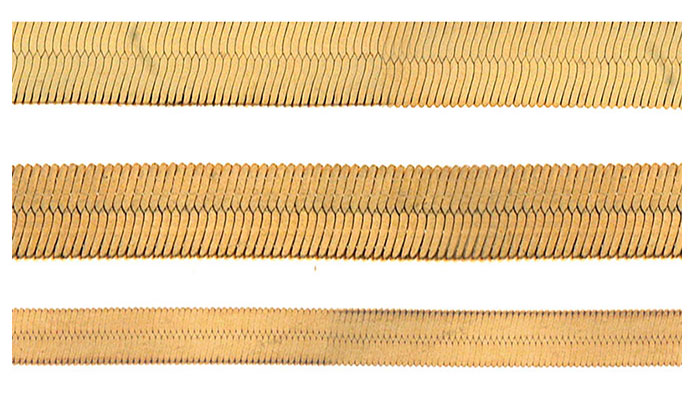

• A fully automatic press for the hammering of compacted (and non) chains. This 30 Ton high precision hammering press is extremely versatile and high precise, leaving no room for error with its micrometric accuracy level. A simple but effective traction system will only pull the chain through the stamping blocks only when the blocks are open and not blocking the  chain. This of course avoids any excess and uncontrolled stretching of the chain. The toggle system based hammering mechanism ensures total and controlled power at every stroke with a minimum force on the internal mechanisms thus reducing wear and maintaining high accuracy throughout the machines life. Tool change is fast and easy thanks to the rapid blocking system. A very silent machine, it is provided with a pneumatic clutch and brake system, and its own forced lubrication system.



  • Technical features
    Press power 30 Ton
    Production speed up to 600 strokes/min
    Useful stroke 116 to 126 mm
    Technical data
    Voltage (threephase) 400 V 50 Hz
    Power 3 kW
    Compressed air 3 lt./min (dry) at 6 bar
    Dimensions 100 x 90 x 200(h) cm – 1,250 kg
    packing 122 x 122 x 226(h) cm – 1,400 kg

  • Download Technical File
