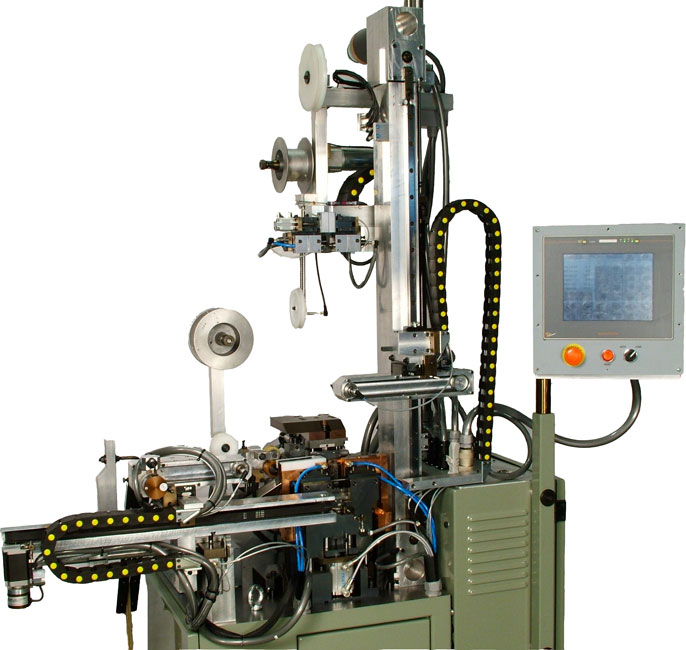

A fully automatic machine which cuts out and stamps (with your hallmark) an end cap which is then automatically electrically soldered to the chain tips. The machine is fed the chain & flat strip on reels. The operator simply programs into the memory bank the various lengths and quantities of chains required.
The machine then sees to measuring and cutting the chain to the required lengths as well as punching out the end cap, folding it, and electrically soldering it to the chain with an adjustable surge of electrical current. Up to 99 different chain profiles can be memorised. The cutting of the chain is carried out at the knot between the links, thus even the half links are used, reducing the scrap to virtually nothing.
Being developed vertically, the unit uses minimum floor space for its operations. The unit is also able to process chains in 24 kt.
Technical features Max. production speed 7-9 chains/min (14-18 welds/m
Max. endcap size 24 mm x 10 mm Chain length min – max 100 – 585 mm Chain width max 10 mm Punching cutting power 2.2 Ton Technical data Voltage (three phase) 400 V 50/60 Hz Power 3,2 kW Compressed air 70 l/min (filtered) at 7 bar Dimensions 91 x 140 x 255(h) cm – 596 kg Packing 110 x 160 x 240 (h) cm – 790 kg
