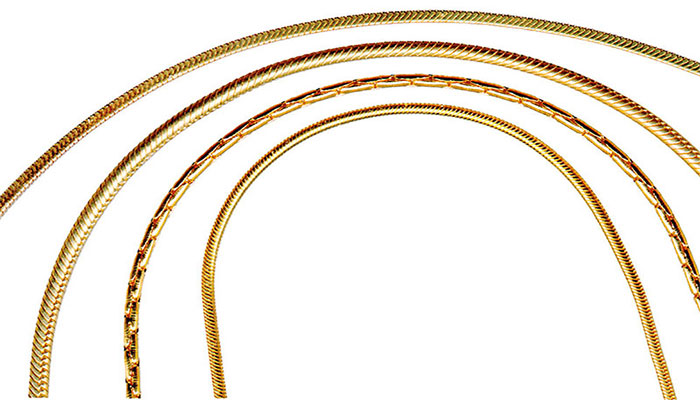

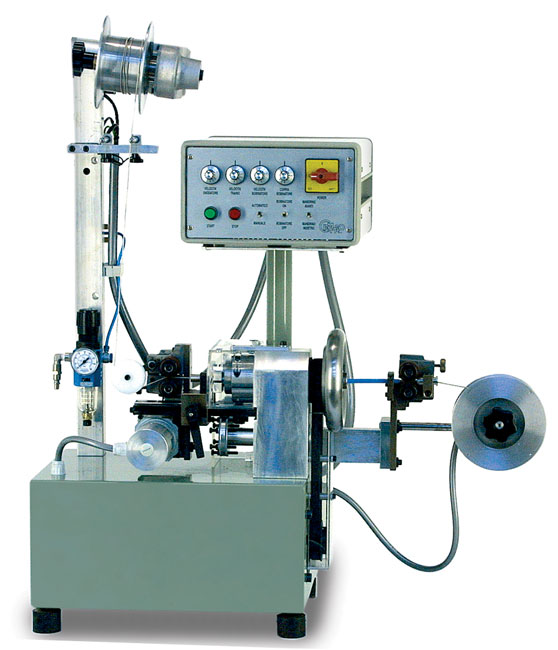

• An automatic limbering unit for hammered chains having round, triangular, square, oval, etc. sections. Able to limber chains having a maximum diameter/diagonal of 4 mm. (larger sizes on request). The limbering action is applied on a 360° section, where the limbering radius is fully adjustable, thus allowing a full range of limbering angles. The unit has an adjustable mechanism which allows the limbering of a wide range of chains. Comes complete with clutch and chain drawing apparatus. Winding unit optional. The unit is able to process up to 24 kt..


  • Technical features
    Production speed4.5 m/min.
    Chain Ø4 mm
    Technical data
    Voltage 230 V 50/60 Hz
    Power 1 kW
    Dimensions 76 x 60 x 88(h) cm – 57 kg
    packing 88 x 55 x 110(h) cm – 97 kg

  • Download Technical File
