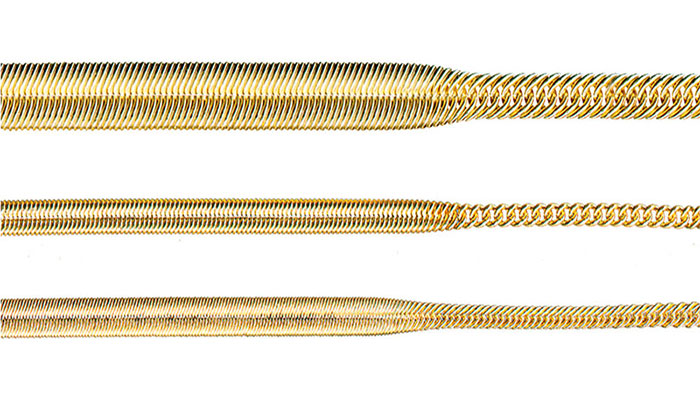

• A simple fast and effective machine produced in 2 different versions, MCC and MCC1. The machine is ideal for compacting cable chains for criss-cross (discovery) chains as well as single or multiple curb chains prior to their being hammered to their final dimensions. The highly precise compacting of the chain allows for a perfectly uniform hammering to follow. The chain is fed to the tooling via a motorised despooler, thus guaranteeing perfect pitch and weight uniformity of the hammered chains. The basic differences between the two models is that the MCC1 carries out this operation on larger chains, where the MCC on smaller chains.



  • Technical features MCCMCC1
    Max. production speed (rpm)700350
    Wire Ø single curb (mm)0.30 to 0.800.80 to 1.20
    Wire Ø double curb (mm)0.25 to 1.00  1.00 to 1.50
    Compressed width (max) 16 mm16 mm
    Technical data
    Voltage (single phase) 230 V 50/60 Hz
    Power 0.8 kW
    Dimensions (MCC & MCC1)50 x 40 x 165 (h) cm 135 kg
    Packing56 x 178 x 57 (h) cm180 kg


    This unit is able to process all kinds of precious metals

  • Download Technical File
