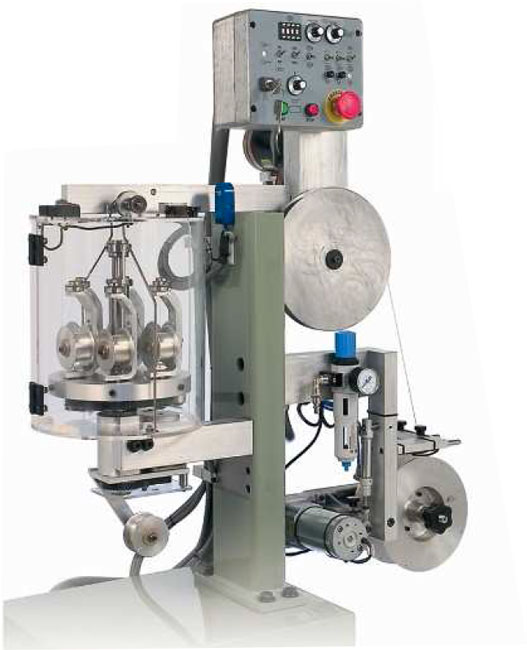

• Extremely fast and compact unit able to produce a multi-wire spiral cable composed of 7 single wires simultaneously in one pass through the machine. The unit houses 7 different spools of wire grouped with a core spool, surrounded by 6 satellite spools. The machine wraps the 6 satellite cables around the core cable while simultaneously producing the core and satellite cables. Machine production rates depend on single wire diameters. With the substitution of the spool plate it is possible to produce cable of up to 12 wires.


  • Technical features
    Wire Ø (min – max) 0.10 – 1.00 mm
    Productivity (7 wires) Ø 0.10 56 m/h
    Winding speed (max) 450rpm
    Technical data
    Voltage (single phase) 230 V 50 Hz
    Power 0.55 kW
    Compressed air 1 lt./min (dried & filtered) at 6 bar
    Dimensions 40 x 72 x 157(h) cm – 90 kg
    Packing 50 x 90 x 170 (h) cm – 150 kg
