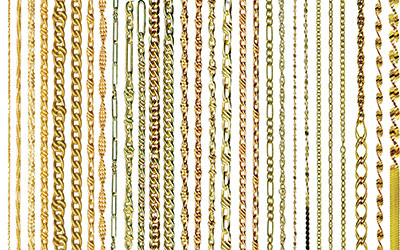

The most flexible machine around. The machine no chain company should be without. The unit is fully programmable, no cams to adjust no belts to change, no mechanical settings to carry out. Just type into the keyboard all of the necessary parameters, or just recall an existing program from the machines memory bank, and you are ready to produce really fancy chains. The machines memory bank is limitless since it can be connected to any personal computer for mass program storage. The basic functions of the machine are twisting, stretching, and compressing. One at a time or simultaneously, giving complete manipulation of chains of various types and sizes. The only machine of its kind with motorised clamps for precise chain handling Experiment new shapes and forms, your only limit is your imagination. Works perfectly also on hollow chains. The end result can also be machine made handmade looking chains. The unit can indifferently produce left or right twisted chains, do alternated chains, etc. Comes complete with its own software package.
Technical features Machine speed up to 200 cycles/min Feeding pitch 50 mm max. Chain width 13 mm max. Wire Ø 0.40 – 4.00 mm (at ideal link proportion) Technical data Voltage (threephase) 400 V 50/60 Hz Power 5.7 kW Dimensions 87 x 72 x 214 (h) cm – 370 kg packing 70 x 200 x 92 (h) 490 kg

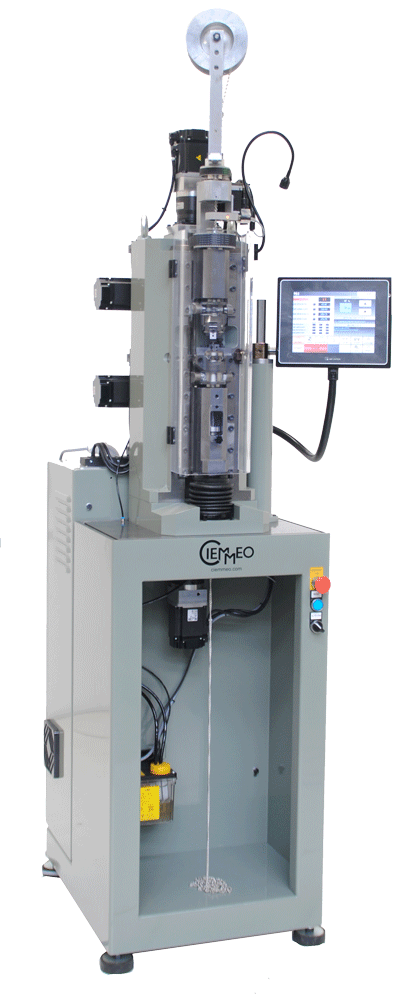

FG2 – Chain manipulation machine
