• The machine calibrates each single link to the exact same dimensions. The links are loaded into vibrating hopper which see to selecting each link and loading it on to the position shaft from which the link is discharge to the calibrating hammers. From there it is sent into a waiting container so as to facilitate loading to the next machine.

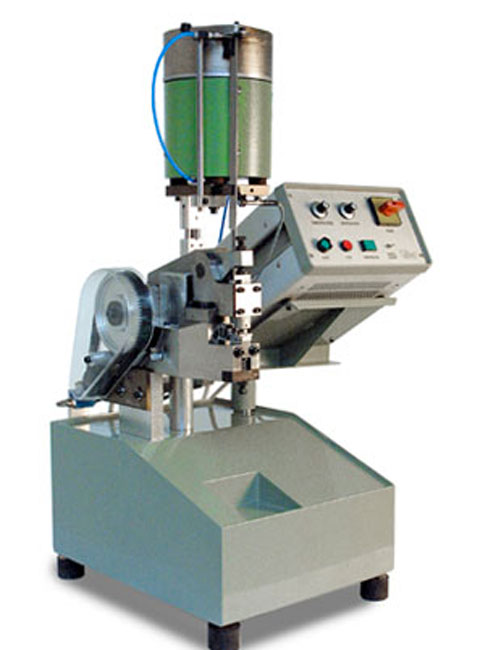

    MBM(EU)

  • Technical features
    Max. production speed 180 links/min
    Wire Ø 0.25 to 1.20 mm
    Technical data
    Voltage (single phase) 230 V 50/60 Hz
    Power 0.5 kW
    Compressed air 30 l/min (filtered) at 4 bar
    Dimensions 45 x 32 x 80 (h)cm – 50 kg
    Packing 56 x 46 x 96 (h) cm – 80 kg
