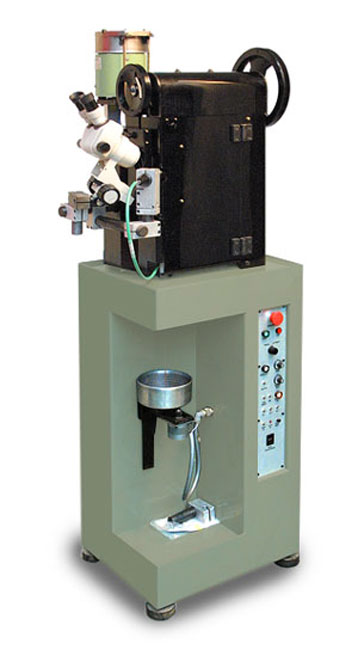

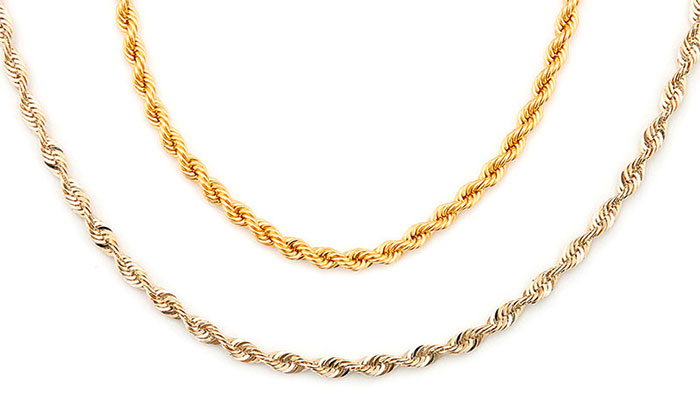

• Machine for the assembly of rope chain. The unit is automatically fed from a vibrating hopper filled with calibrated links. The links woven together to form the chain and are soldered together with the use of a laser generator which solders the links together without adding any extra material. The finished chain is collected in a rotating dish. There is no need for any oven soldering, thus maintaining the initial characteristics of the wire.


  • Technical features
    Max. production speed 130 links/min
    Wire Ø 0.25 to 1.00 mm
    Technical data
    Voltage (single phase) 230 V 50/60 Hz
    Power 0.60 kW
    Compressed air 1 l/min (filtered) at 6 bar
    Dimensions 65 x 50 x 190 (h)cm – 190 kg
    Packing182 x 77 x 73(h) cm
