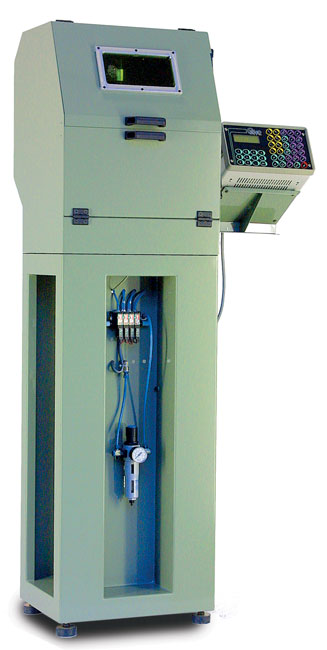

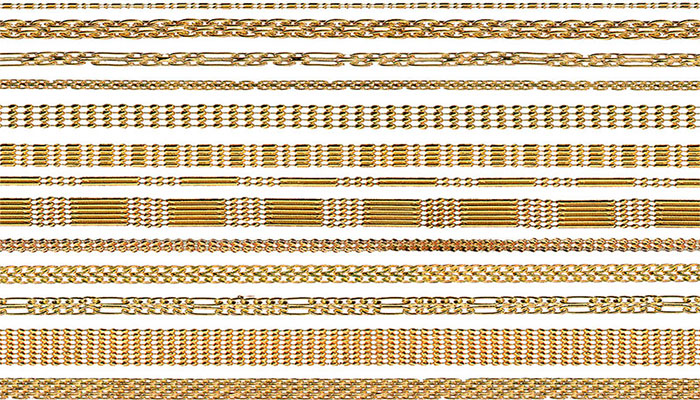

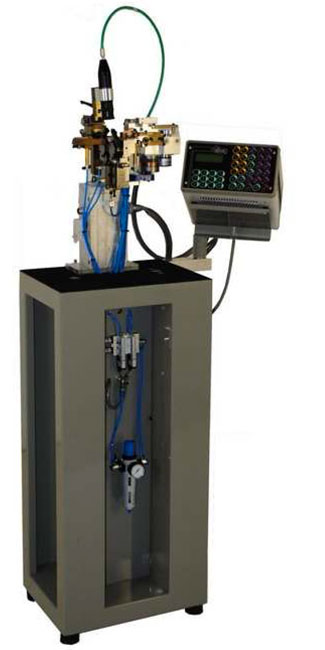

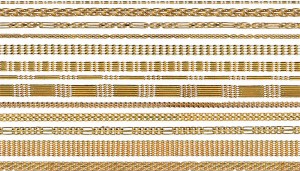

• Automatic machines for the production of “Bismark” chains. These units solder two or more chains together in parallel. Version 3 is used for only fixed pitch chains, while version 5 can also process alternated chains (Figaro).
    The unit has a unique advancing system which automatically corrects any error between the chains pitches. The soldering process is carried out using a simple laser unit. Thanks to the speed and accuracy of the laser, the units are able to process up to 600 links per minute, producing quality enhanced product.
    All of the machine is completely controlled by a microprocessor based control unit, which sees to controlling all facets of the process: chain feeding, laser shooting, etc. Laser soldering signifies high efficiency, low maintenance, reliability and ease of use.



  • Technical features
    Max. production speed SCIP3200 links/min
     SCIP5600 links/min
    Max. process width 22 mm
    Wire Øfrom 0.20 to 2.00 mm
    Technical Data
    Voltage (single phase)230 V 50/60 Hz
    Power0.15 kW
    Compressed air35 l/min (filtered) at 6 bar
    Dimensions70 x 48 x 157(h) cm – 68 kg
    Packing198 x 62 x 70 (h) cm – 130 kg

  • Download Technical File

    SCIP 3-5
    SCIP 3-5/B
