MTSM

Europe gold chain machinary | Ciemmeo

  • MTSM
  • Technical Specifics
  • Video
  • Technical File

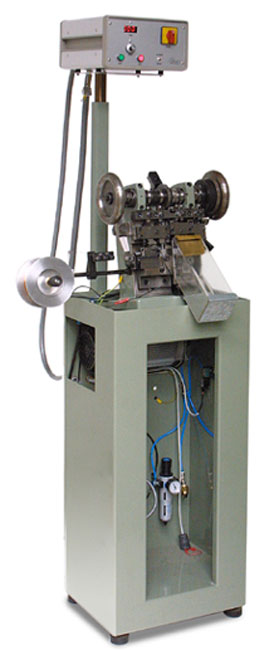

  • Machine for the production of rope chain links. The unit is fed with wire on a reel. The wire can be solid or hollow (tube with a metal core). The process consists in cutting to size, forming the link and discharging it into a waiting container.

    MTSM

  • Technical features
    Max. production speed 220 links/min
    Wire Ø 0.25 – 1.00 mm
    Technical data
    Voltage (single phase) 230 V 50/60 Hz
    Power 0.50 kW
    Compressed air 100 l/min (filtered) at 6 bar
    Dimensions 55 x 50 x 132 (h)cm – 121 kg
    Packing 61 x 176 x 64 (h) cm – 176 kg

  • Download Technical File
