A small compact unit able to twist at high speed all types of compacted, compressed or stiffened chains. Chains can be flat, round, square.

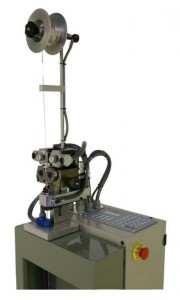

FG7

  • A small compact unit able to twist at high speed all types of compacted, compressed or stiffened chains. Chains can be flat, round, square etc. All of the movements are motorised and centrally controlled by a programmable controller, thus with no cams to adjust or change, turnover time is reduced to a minimum. Able to memorise upto 100 different programs.

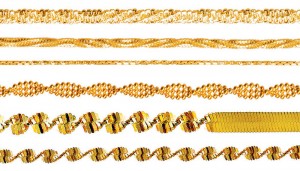

    The FG7 twists chains indifferently left and right, alternating pitch, direction and twists simultaneously. Even able to vary the degree of twist within the same spiral. Very simple tooling which can partially be re-used for different chains.

    FG7

  • Technical features
    Machine speedup to 380 cycles/min.
    Chain width6 mm max.
    Larger sizes on request
    Technical data
    Voltage (singlephase)230 V 50/60 Hz
    Power0.55 kW
    Dimensions40 x 40 x 190 (h) cm – 90 kg
    packing60 x 156 x 65 (h) x kg

  • Download Technical File

    Copertina_catalogo

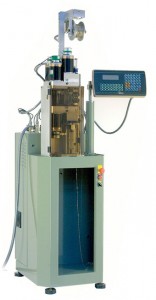

FG5

  • The most flexible chain machine around which no chain company should be without. The unit is fully programmable, no cams to adjust no belts to change, no mechanical settings to carry out. Just type into the keyboard all of the necessary parameters, or just recall an existing program from the machines memory bank, and you are ready to produce really fancy chains. The machines memory bank is limitless since it can be connected to any personal computer for mass program storage. The basic functions of the machine are twisting, stretching, and compressing. One at a time or simultaneously, giving complete manipulation of chains of various types and sizes. The only machine of its kind with motorised clamps for precise chain handling. Experiment new shapes and forms, your only limit is your imagination. Works perfectly also on hollow chains. The end result can also be machine made handmade looking chains The unit can indifferently produce left or right twisted chains, do alternated chains, etc. Comes complete with its own software package.

    FG5

  • Technical features
    Machine speed up to 99 cycles/min.
    Feeding pitch 120 mm max.
    Chain width 7 mm max.
    Wire Ø 0.20 – 1.20 mm (at ideal link proportion)
    Technical data
    Voltage (threephase) 400 V 50/60 Hz
    Power 5 kW
    Dimensions 70 x 85 x 196 (h) cm – 245 kg
    packing 93 x 184 x 80 (h) 320 kg


  • FG2 – Chain manipulation machine


    Download Technical File

    Copertina_catalogo



FG2

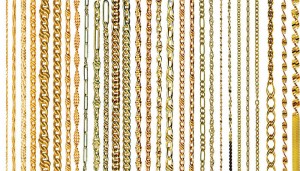

  • The most flexible machine around. The machine no chain company should be without. The unit is fully programmable, no cams to adjust no belts to change, no mechanical settings to carry out. Just type into the keyboard all of the necessary parameters, or just recall an existing program from the machines memory bank, and you are ready to produce really fancy chains. The machines memory bank is limitless since it can be connected to any personal computer for mass program storage. The basic functions of the machine are twisting, stretching, and compressing. One at a time or simultaneously, giving complete manipulation of chains of various types and sizes. The only machine of its kind with motorised clamps for precise chain handling Experiment new shapes and forms, your only limit is your imagination. Works perfectly also on hollow chains. The end result can also be machine made handmade looking chains. The unit can indifferently produce left or right twisted chains, do alternated chains, etc. Comes complete with its own software package.

  • Technical features
    Machine speed up to 200 cycles/min
    Feeding pitch 50 mm max.
    Chain width 13 mm max.
    Wire Ø 0.40 – 4.00 mm (at ideal link proportion)
    Technical data
    Voltage (threephase) 400 V 50/60 Hz
    Power 5.7 kW
    Dimensions 87 x 72 x 214 (h) cm – 370 kg
    packing 70 x 200 x 92 (h) 490 kg

  • FG2 – Chain manipulation machine

  • Download Technical File
