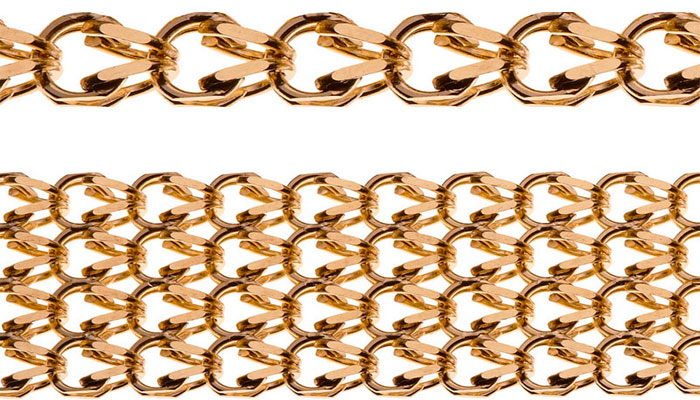

Robotic machine for the assembly of Europe chain Electronically programmed see to selecting, and coupling 2 links, which are then laser soldered, and woven into another 2 links to form the Europe chain. All movements via PLC controlled servomotors allowing flexibility of movement. Equipped with a 3 shot laser beam deviator, allowing maximum power for each laser shot, while only using one single laser generator.
Can optionally be equipped with up to 4 link feeders thus allowing up to 4 different colours or diamonds cut links to be inserted into a single chain. Works with all precious and non precious metals, as well as with hollow or solid links.
Technical features Max. production speed 80 links/min Wire Ø 0.25 – 1.00 mm Technical data Voltage (single phase) 230 V 50/60 Hz Power 0.60 kW Compressed air 1 l/min (filtered) at 6 bar Dimensions width 95 x 66 x 167 (h)cm – 240 kg packing (with laser) 120 x 93 x 195(h) cm – 480 kg
